公司擁有國內先進的生產設備及專業的檢測系統,組建了在精密光學領域、精密模具領域和進口精密注塑領域從業數十年的專家研發團隊及優秀高效并富于激情的市場銷售團隊傳統相機鏡頭、數碼相機鏡頭、影像傳輸鏡頭、可視手機鏡頭、可視PDA鏡頭等各類鏡頭、鏡片的設計、開發及生產。
秉持“精益求精,追求完美,勇于創新”的核心價值觀,堅持對創新、品質、服務的孜孜追求,竭誠為廣大客戶提供一流的產品,最好的服務,愿與世界各地企業和商家精誠合作。創新、改進、滿意是我們永恒不變得宗旨。
-
產品示意圖產品型號材質外形尺寸LED 類型測試角度產品圖紙
-

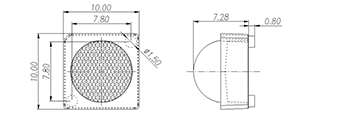

LD-451010-5050PMMADimension:L10*W10×H7.28mm
Column Φ1.5mm,centre-to-centre spacing:7.8mm2835/3535RGB
/5050RGBW28.6°/40.5°
/47.7° -

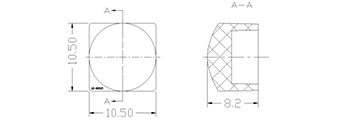

LD-451010-RXT21-A2PMMADimension:L10.5*W10.5×H8.2mm
No positioning column2835/3535RGB
/5050RGBW48.7°/50.1°
/59.6° -

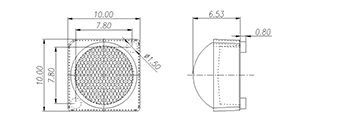

LD-601010-5050PMMADimension:L10.0*W10.0×H6.53mm
Column Φ1.5mm,centre-to-centre spacing:7.8mm2835/3535RGB
/5050RGBW44.2°/51.7°
/64.2° -
LD-601010-RXT21-A2PMMADimension:L10.5*W10.5×H7.37mm
No positioning column2835/3535RGB
/5050RGBW66.8°/61.9°
/76.1° -

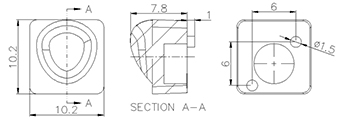

LD-60P451010-3535RGB-A2PMMADimension:L10.2*W10.2×H7.8mm
Column Φ1.5mm,centre-to-centre spacing:6.0mm3535RGB60P45° -

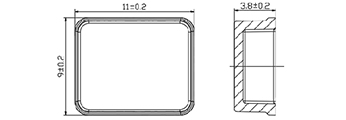

LD-P0911PMMADimension:L 11.0 W 9.0×H 3.8mm
No positioning column -

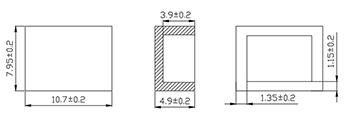

LD-P1085PMMADimension:L 10.7*W 7.95×H 4.9mm
No positioning column283585.8° -

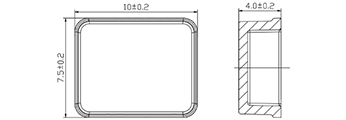

LD-P1075PMMADimension:L 10.0*W 7.5×H 4.0mm
No positioning column -

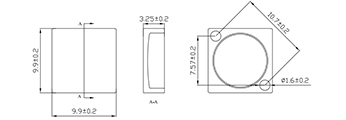

LD-P1201010PMMADimension:L 10.0*W 10.0×H 3.25mm
Column Φ1.6mm,centre-to-centre spacing:10.7mm -

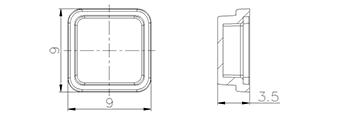

LD-P1209935-2835/3535RGB/5050RGBWPMMADimension:L9.0*W9.0×H3.5mm
No positioning column2835/3535RGB
/5050RGBW86.7°/70.7°
/98° -

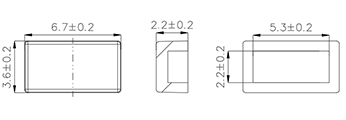

LD-P6322PMMADimension:L 6.7*W 3.6×H 2.2mm
No positioning column -

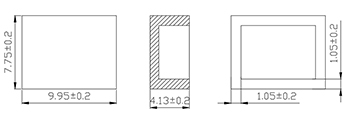

LD-P71042PMMADimension:L 9.95*W 7.75×H 4.13mm
No positioning column -

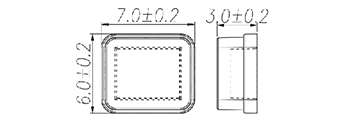

LD-P7630PMMADimension:L 7.0*W 6.0×H 3.0mm
No positioning column -

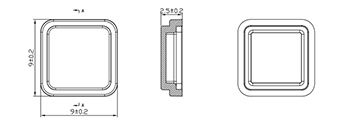

LD-P9925PMMADimension:L 9.0*W 9.0×H 2.5mm
No positioning column -

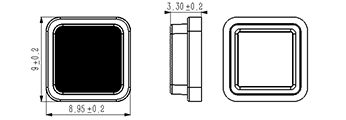

LD-P9933PMMADimension:L 9.0*W 9.85×H 3.3mm
No positioning column -

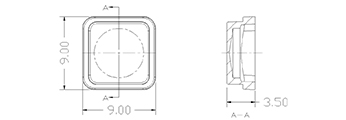

LD-P9935PMMADimension:L9.0*W9.0×H3.5mm
No positioning column2835/3535RGB
/5050RGBW82.7°/77.6°
/99.1° -

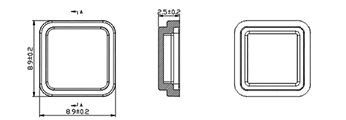

LD-P9935KPMMADimension:L 8.9mm×W 8.9mm×H 3.5mm
No positioning column -
LD-P9940PMMADimension:L9.0*W9.0×H4.0mm
No positioning column2835/3535RGB
/5050RGBW95.2°/ 88.2°
/101.4° -

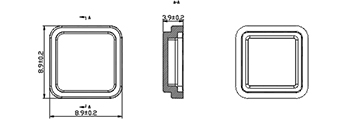

LD-P9940MSPMMADimension:L8.9mm×L8.9mm×H3.9mm
No positioning column -

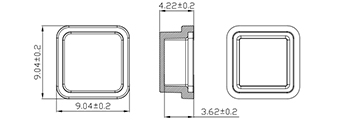

LD-P9942-PMMAPMMADimension:L 9.0*W 9.0×H 4.22mm
No positioning column -

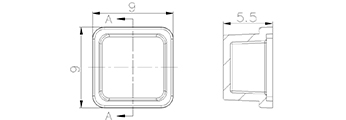

LD-P9955PMMADimension:L9.0*W9.0×H5.5mm
No positioning column2835/5050RGBW87.8°/96.8° -

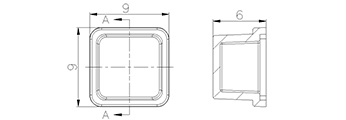

LD-P9960PMMADimension:L9.0*W9.0×H6.0mm
No positioning column2835/5050RGBW81.6°/90.3° -

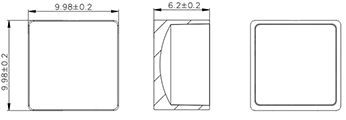

LD-RXT21-120-A4PMMADimension:L 10.0*W 10.0×H 6.2mm
No positioning column -
LD-RXT21-20-A3PMMADimension:L 10.5*W 10.5×H 9.07mm
No positioning column -

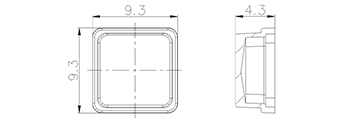

LD-RXT22C120-A3PMMADimension:L9.3*W9.3×H4.3mm
No positioning column283595.8° -

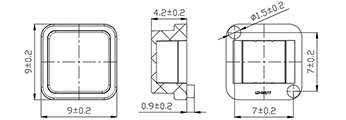

LD-SDP9942-ZPMMADimension:L 9.0*W 9.0×H 4.2mm
Column Φ 1.5mm,centre-to-centre spacing:7.0mm
